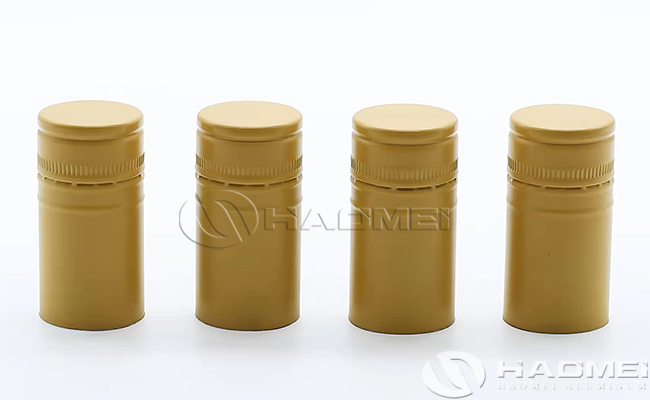

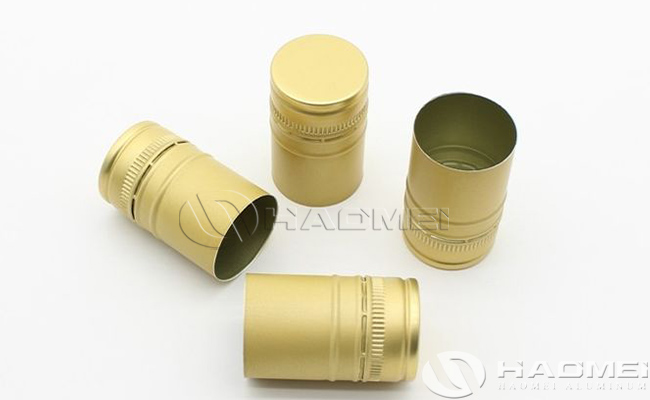

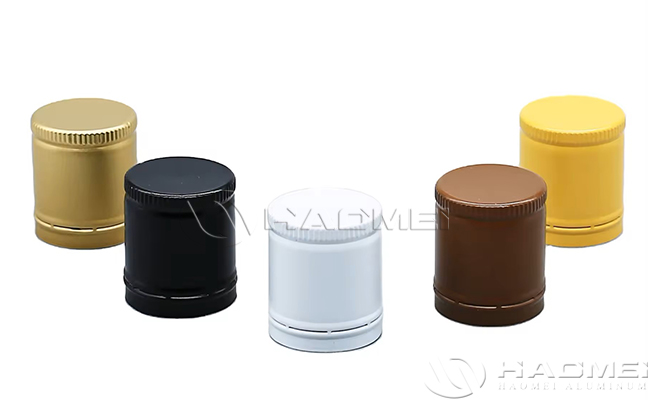

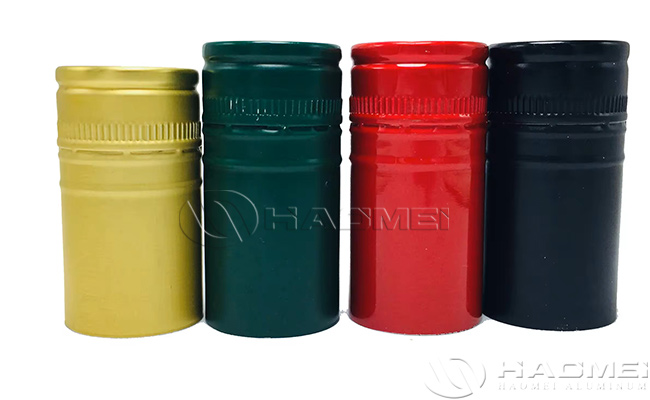

Aluminium PP Caps
Aluminum Pilfer Proof Caps are caps specifically designed to prevent bottles from being opened or tampered with prior to sale.
Tel:+86-18137889531
WhatsApp: 8618137889531
Email :sales@bottle-caps.cn
PDF : Download
Message

PRODUCT DETAILS

Aluminum Pilfer Proof Caps?

Aluminum Pilfer Proof Caps are caps specifically designed to prevent bottles from being opened or tampered with prior to sale. These caps are commonly used in the packaging of beverages, pharmaceuticals, cosmetics and other products where security and integrity are required.

Aluminum pp caps have become an important part of the modern packaging industry by virtue of their excellent tamper evident performance, sealing and wide range of application scenarios.

Aluminium PP Caps Structural Features:

- Material Composition: Usually made of high purity aluminum (e.g. 8011 aluminum alloy) with a thickness of 0.15-0.25mm and coated with a clear protective lacquer to enhance corrosion resistance.

- Tamper-resistant design: Tamper-resistant design: Commonly constructed as a ROPP (Roll-On Pilfer Proof) cover, threads are formed through a rolling process, combined with a disposable break ring or tear strip that leaves a visible mark once opened.

- Sealing gaskets: Internal gasket materials include EPE (Expanded Polyethylene), cork or latex, with thicknesses starting at 1.5mm, to ensure airtightness and vacuum sealing.

- Easy-open design: Many aluminum pp caps are equipped with easy-open tabs or tear lines to make it easier for consumers to open them.

- Sealing: The aluminum material and its liner design provide a good seal to prevent liquid leakage and external contamination.

Aluminium PP Caps Product Specification:

Aluminium Alloys

1050, 1070, 3105, 8011

Liner Options

PE Foam, Composite Material, Pulp and Aluminium, Pulp and Polymer, Heat Seal, Pressure Sensitive, Plastic Sol

Surface Finishes

Brushed Aluminium, Polished, Anodized, Lacquer Coating, Color Coating (Silver, Blue, Black, Gold, etc.)

Diameter Range

18 mm – 53 mm

Common Sizes

28x15 mm, 30x21 mm, 30x35 mm, 30x60 mm, 53-400, 24x400, 18x400mm, 20x400mm

Thread Type

Continuous Thread (CT), Roll-On Pilfer Proof (ROPP), Push & Turn

Customizations

Embossing, Debossing, Laser Engraving, Custom Logos

Certifications

FDA Approval, EU Food-Grade Compliance, ISO Standards

Cap Height Range

Short, Medium, Tall

Compatibility

Glass Bottles, Plastic Bottles, Jars, Metal Containers

Applications

Beverages, Wine, Food Products, Pharmaceuticals, Cosmetics, Personal Care, Olive Oils, Chemical Products

Aluminium PP Caps Common Sizes

- Diameter range: common sizes include 22mm, 25mm, 28mm, 29.35mm, 53mm, etc., of which 28mm and 53mm are mostly used for liquor and large capacity containers.

- Height specifications: such as 22 x 15mm, 25 x 17mm, 28 x 18mm, etc., specifically adjusted according to the bottle design.

pp cap.jpeg

Types of Caps

Size

ØA

ØB

C

Application



Max

Min

Max

Min

Max

Min


Small

18/12

18.4

18

18.8

18.4

12.5

12.2

Food &

Pharmaceutical

20/12

20.4

20

20.8

20.4

12.7

12.2

Standard

22/15

22.5

22

22.9

22.5

12.5

14.9

Beverage,

Food &

Pharmaceutical

25/17

25.5

25

26.1

25.6

16.9

16.1

28/18

28.4

28

28.8

28.4

18.3

18.1

31.5/18

31.5

31.1

31.9

31.5

18.3

18

53/19

53.8

53.3

54.3

53.8

18.7

18

Shallow

38/16

38.5

38

39

38.5

16.5

15.8

Beverage

&Food

46/16

46.2

45.7

46.7

46.2

16.6

15.8

Extra Deep

30/35

29.6

29

30

29.6

34.9

34.1

Beverage &

Distillery

31.5/24

31.5

31.1

31.9

31.5

24.3

23.5

31.5/44

31.5

31.1

31.9

31.5

44.3

43

30/60

29.2

29

30

29.7

60

59.8

Distillery

Aluminium PP Caps Craft:

Aluminium PP Caps Advantages:

- Anti-counterfeiting and security: Ensure that the product has not been opened illegally through one-time break structure or special coating technology to protect brand reputation.

- Corrosion resistance: Aluminum surface treatment (e.g. painted or anodized) enhances resistance to acids and alkalis, making it suitable for pharmaceutical and chemical packaging.

- Lightweight and environmentally friendly: Compared to other metals, aluminum lids are lightweight and recyclable, meeting the need for sustainable development.

- Customization Options: Support for color customization (e.g. 150+ color options), printed logos or anti-counterfeiting marks for brand recognition.

Aluminium PP Caps Applications:

Aluminum PP bottle caps are widely used in many fields, including:

- Pharmaceutical industry: used for sealing pharmaceutical bottles to ensure a sterile environment, commonly found in pill bottles and injection containers.

- Alcohol & Beverage: widely used in high-end liquor bottles such as whiskey and wine, with both aesthetic and anti-counterfeiting features.

- Food & Cosmetics: such as sauce bottles and perfume bottles, extending shelf life through vacuum sealing.

- Industrial chemicals: corrosion-resistant properties are suitable for encapsulating acidic and alkaline liquids or solvents.


PACKING

Parameter

Specification

Quantity

According to the caps sizes

Packing box

5 ply or 7 ply Body Corrugated Boxes according to the requirement of customer.

Packing – Inner

Packed in sealed Polyethylene bags

Packing – External

Gum tape and strapped with PVC straps

Optional

Palletize as per Customer requirement.
